Our load-sharing Simplicity Axles™
are the best caravan and trailer axles you can buy.



Whether you want to cruise the highways or explore the outback four-wheel-driving,

our load-sharing Simplicity Axles™ are the best caravan and trailer axles you can buy.


If you need to fit a work trailer, horse float, or agricultural implement for years of reliable service, we can tailor a system to meet your needs – with up to 4.4 tonne capacity.



Our systems can be made in a range of configurations, depending on your load-bearing and travel requirements. Our legendary leaf spring design and patented Smart Coil spring are both available in tandem and single axle systems. We also offer a tandem airbag system and an agricultural tandem system designed for heavy-duty off-road work.

Simplicity Smart Coil

The Simplicity Smart Coil is available in both single axle configuration from 1400 kg and tandem axles from 2500 kg.

Airbag tandem systems

With a load capacity up to 4200 kg, our tandem airbag systems are a popular option for touring vans travelling mostly on sealed roads, with some off-road travel.

Tandem axle systems
(on & off-road)

Leaf spring: 2250 kg to 4400 kg

Coil spring: 2500 kg to 4400 kg (Available in twin trailing arm or single beam leading arm/trailing arm configuration.)



Achieves full wheel articulation in an
unladen state.

Airbag tandem systems

Up to 4200 kg

Load-sharing Coil (LSC)

Our patented LSC design applies the Smart Coil to a tandem system for heavier caravan and trailer loads from 2500 kg to 4400 kg.

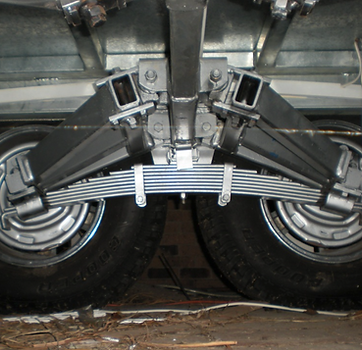

Leaf spring axle systems

Our leaf spring systems also feature our load-sharing design and full wheel articulation, without requiring shock absorbers. Available in single and tandem systems.

Single axle systems
(on & off-road)

Rubber spring: up to 750 kg

Leaf spring: 1500 kg to 2500 kg

Coil spring: 1400 kg to 2600 kg

For lighter loads, our convoluted rubber spring systems with trailing arm offer a very light cushioned ride. Leaf springs or coil springs are used on our 1400 kg and
heavier units.

Note: It is essential that the appropriate wheels

and tyres be fitted, suited to each configuration.

Agricultural Tandem
(off-road only)

Up to 4400 kg

We believe Tandem Simplicity Axles™ Systems are the only proven long-term Independent Load-Sharing units available in the light trailable vehicle market.



OPTIONS

Single Axle

>

>

>

Load Capacity: 750 kg - 2500 kg gross.
Main Beam: GD 350 RHS
Pivot Bush Assembly: 3 Piece Steel and

Polyurethane Bush 4 off with Polyethelene thrust washers 1/2” bore.

>

>

>

>

>

Hub Type

1500 kg: 1 piece cast iron
1600 kg, 1800 kg & 2000 kg: All steel hub with demountable cast-iron brake drum.
Springs: Eye & Slipper 1500 kg &
1600 kg units

Eye & Eye: 1800 kg - 2500 kg units

Spring Location Pivot: Delron Bush

Tandem Axle

>

>

>

Load Capacity: 2250 kg, 2500 kg, 3000 kg, 3500 kg, 4000 kg, 4400 kg gross.
Main Beam: GD 350 RHS
Pivot Bush Assembly: 3 Piece Steel and Polyurethane Bush 8 off with Polyethelene thrust washers 5/8 bore.

>

>

Hub Type

2250 kg: 1 piece cast iron
2500 kg upwards: All steel hub with demountable cast-iron brake drum.

Tandem and Single

>

>

>

>

Brake options
Electric: 10" x 2 1/4", 12 x 2" (15" or 16" wheels)
Hydraulic: 9" x 1 3/4", 12 x 2"

Mechanical: 9" x 2"

Hydraulic Disc: 12" x 3/4"

Grade 8 High Tensile Bolts used throughout.

Seals

>

>

>

>

Composite: HAU 865
Slimline: HAU 864

A75: HAU 863

A75H: HAU 862

Axle weights – Axle weights will vary depending on capacity and chassis width.

3.5 - 4.4 tonne tandem 12” brakes 300 kg - 310 kg approx

2.5 - 3 tonne tandem  12” brakes 240 kg - 250 kg approx

2.5 - 2.8 tonne tandem 10” brakes 210 kg - 220 kg approx

2 - 2.5 tonne single axle 12” brakes 150 kg – 160 kg approx


Large Journal Bearings

Type of Hub.

Composite

Slimline

A75L

A75

A75H

Journal Size

1.250

1.377

1.500

1.500

1.687

Cup / Cone

LM67010/LM67048           L68110/L68149                  16284R/16150R                 2720/2788                          26823/26884

Load Capacity

680 kg

750 kg

1,200 kg

1,200 kg

1,400 kg

* load per wheel

Small Journal Bearings

Load Capacity

680 kg

750 kg

1,200 kg

1,200 kg

1400 kg

Type of Hub.

Composite

Slimline

A75L

A75

A75H

Journal Size

0.866

0.866

1.250

1.250

1.377

Cup / Cone

LM12710/12749                LM12710/12749

LLM67010/67048              LM67010/LM67048          L68110/68149

* load per wheel
